AIM MYCHRON 6 2T

Description

The AiM MyChron6 2T is a GPS lap timer and data logger for karting that manages two temperature channels at the same time, taken from exhaust gas, cylinder head or water temperature sensors. This kit includes the M10 water thermoresistor and is available from stock in Dubai for karters in the UAE.

Key specifications

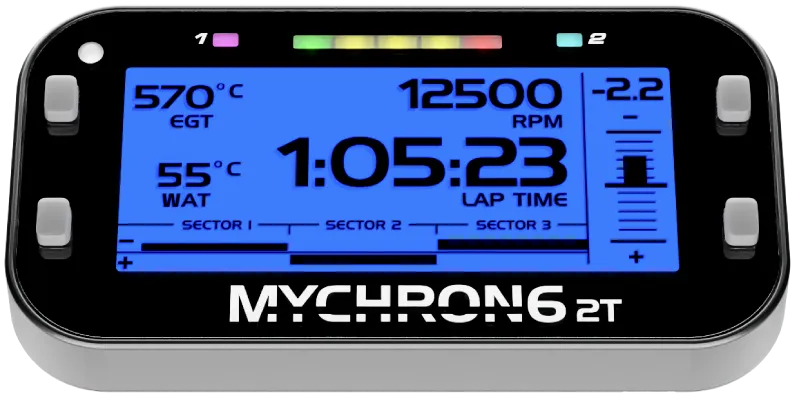

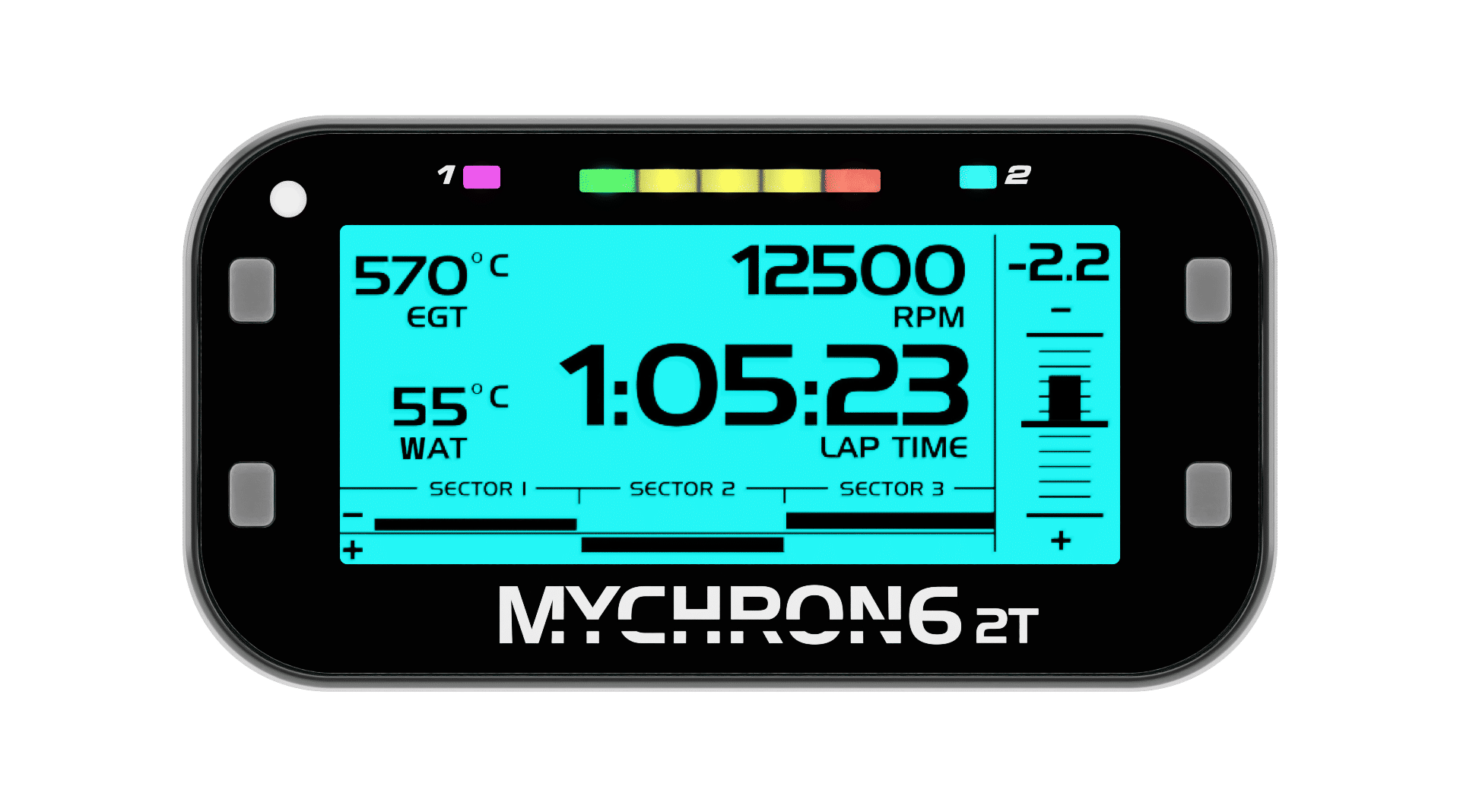

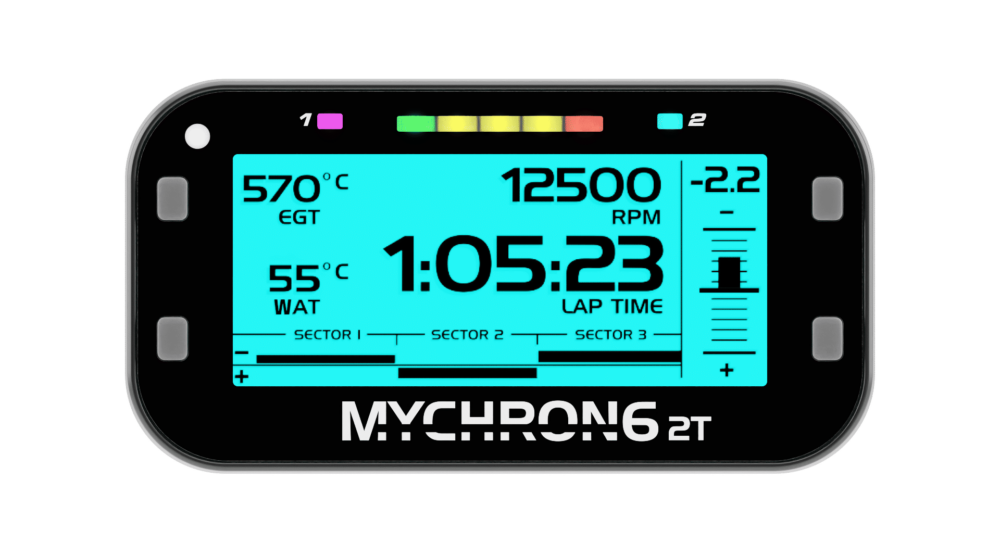

• Graphical display, 320 x 136 pixels, backlight in 8 configurable RGB colours, ambient light sensor
• 5 configurable RGB shift lights + 2 configurable RGB alarm LEDs
• Internal 25 Hz GPS receiver with four satellite systems (GPS, GLONASS, BeiDou, Galileo); lap time precision 1/100 s
• Integrated track database: automatic track, start line and time zone recognition
• 6-axis inertial platform (IMU)
• Shows and records lap time, rolling lap time, split/sector times, predictive and delta time (+/- best), lap number, speed, RPM and temperatures
• Wi-Fi (data download and firmware updates) and Bluetooth Low Energy (heart rate monitor)
• 2 CAN connections; digital inputs for optical and magnetic lap signal
• USB-C for data download, battery charge and optional 16 GB memory module
• 4 GB internal memory
• Internal 3,900 mAh rechargeable lithium battery, approx. 20 h battery life; external power 9-15 V
• PA6 GS30% body, 152 x 81 x 37 mm, 370 g, IP67 waterproof
• 2 temperature inputs (thermocouple and/or thermoresistor)
• Connectors: Binder 712 female 7-pin, 8-pin and 5-pin

Compatibility

• External modules: ACC3, SmartyCam series cameras, LCU series lambda controllers, heart rate monitor via Bluetooth
• Accepts AiM EGT thermocouples, CHT (under-plug) thermocouples and M10 water thermoresistors

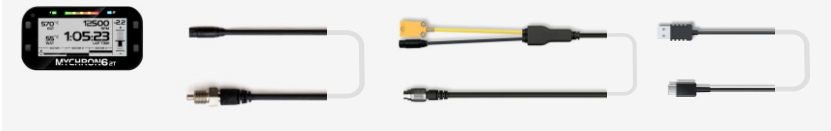

In the box

• MyChron6 2T
• Water thermoresistor, M10 thread
• Extension harness 1 TR + 1 TC (one thermoresistor + one thermocouple)
• USB 2.0 cable, Type-A to Type-C, 100 cm

Software

Data can be downloaded via cable, Wi-Fi or USB storage and analysed in AiM RaceStudio 3 (channel report, track split report, SmartyCam video, session comparison). On-device data recall shows best lap, best splits, best rolling and theoretical lap, RPM graph and histograms.

Genuine AiM part, part number XM62TTRM1011. Scuderia General Trading is the official AiM distributor in the UAE. In stock at our Dubai warehouse where shown; orders are dispatched the same day they are received, with DHL Express delivery across the UAE and the GCC.
