Redspeed Mini Kart

Description

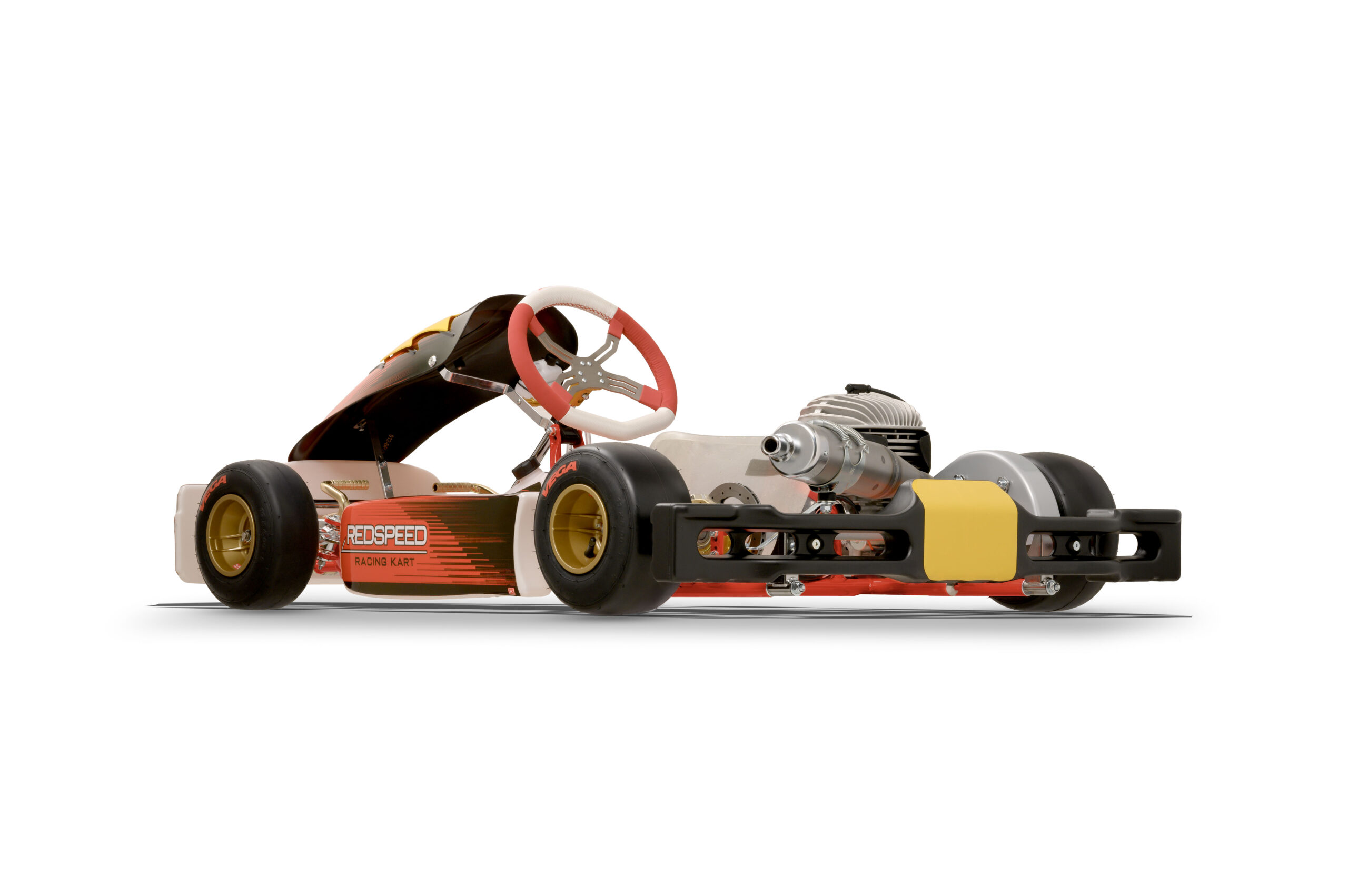

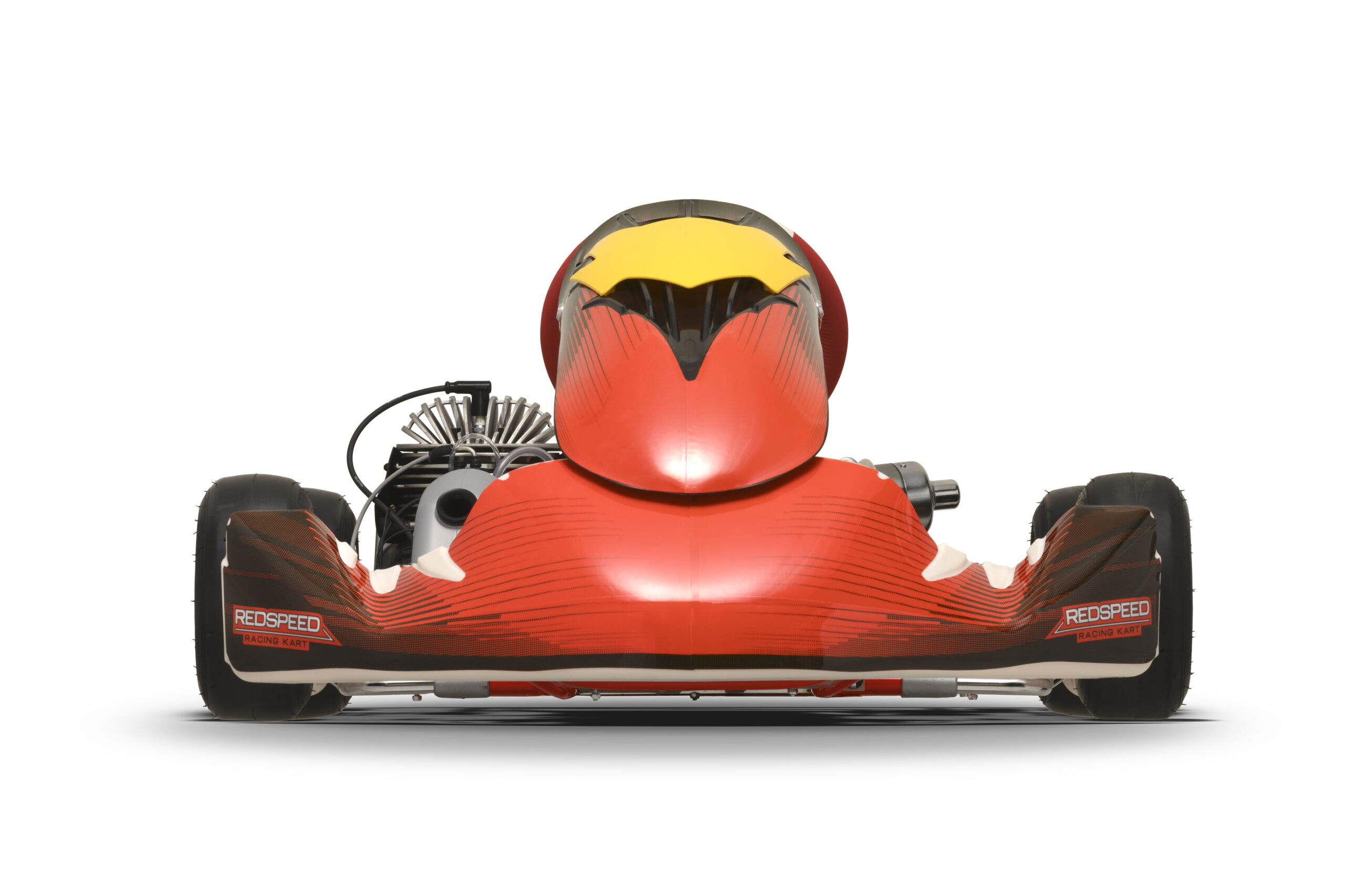

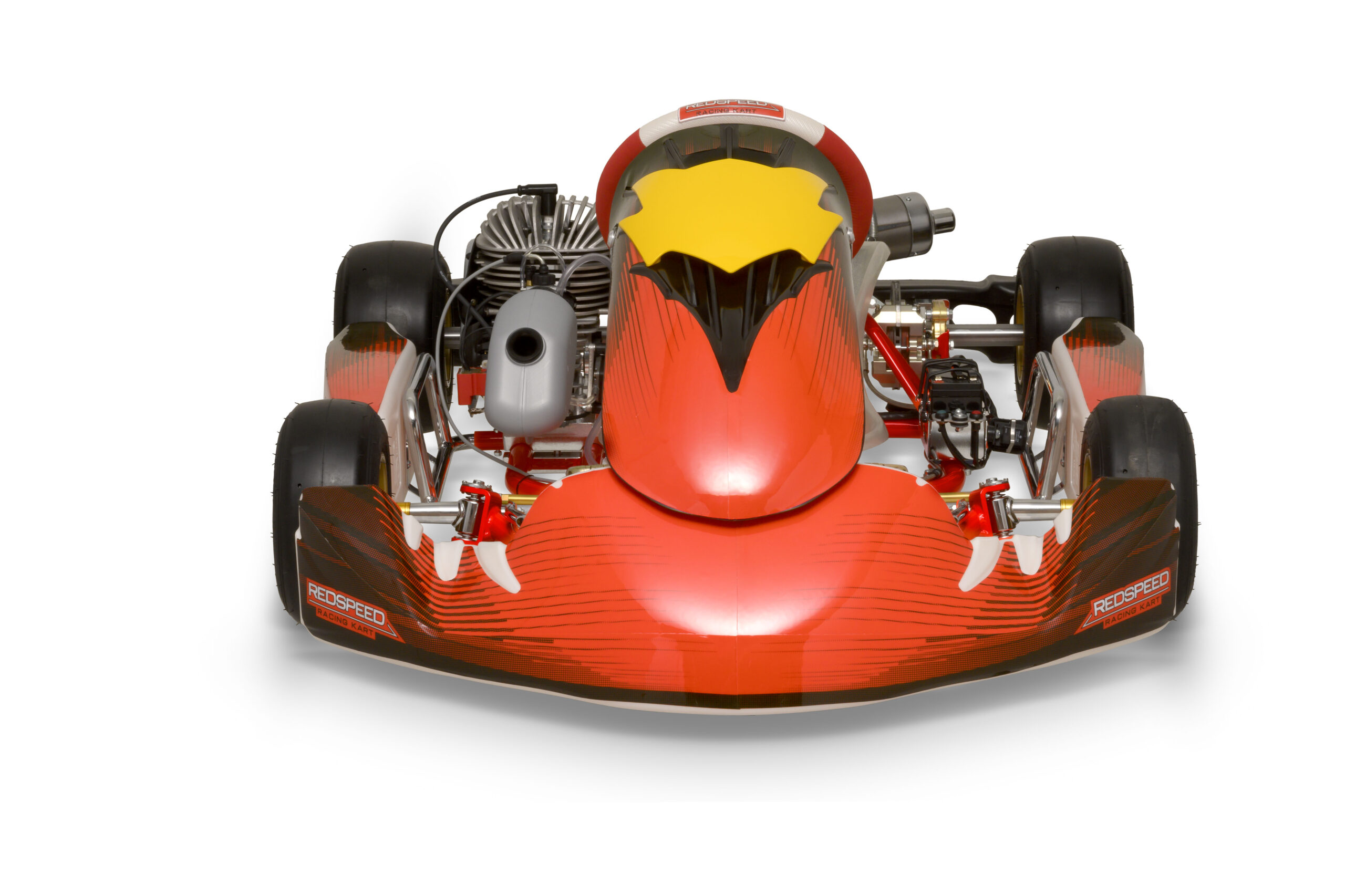

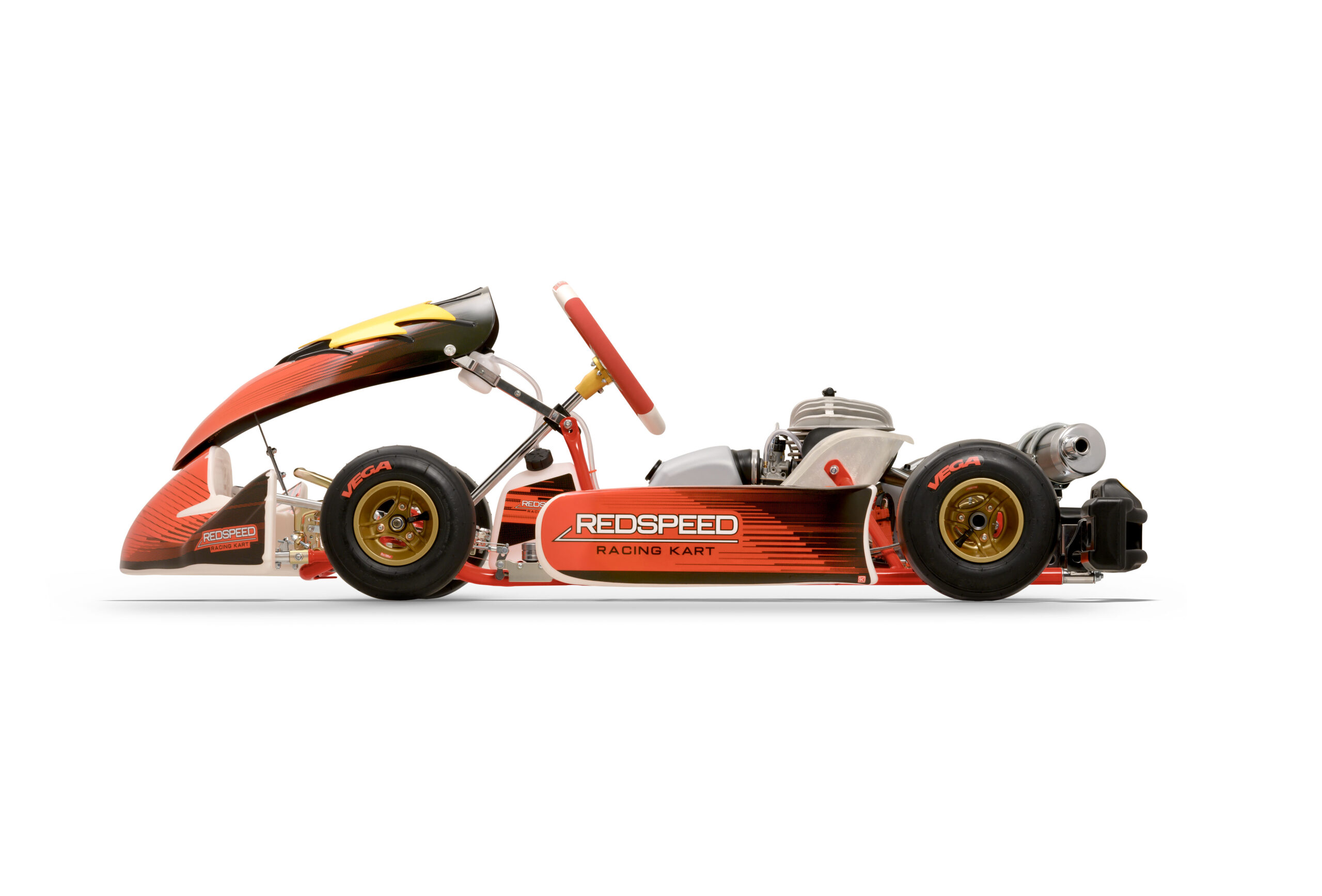

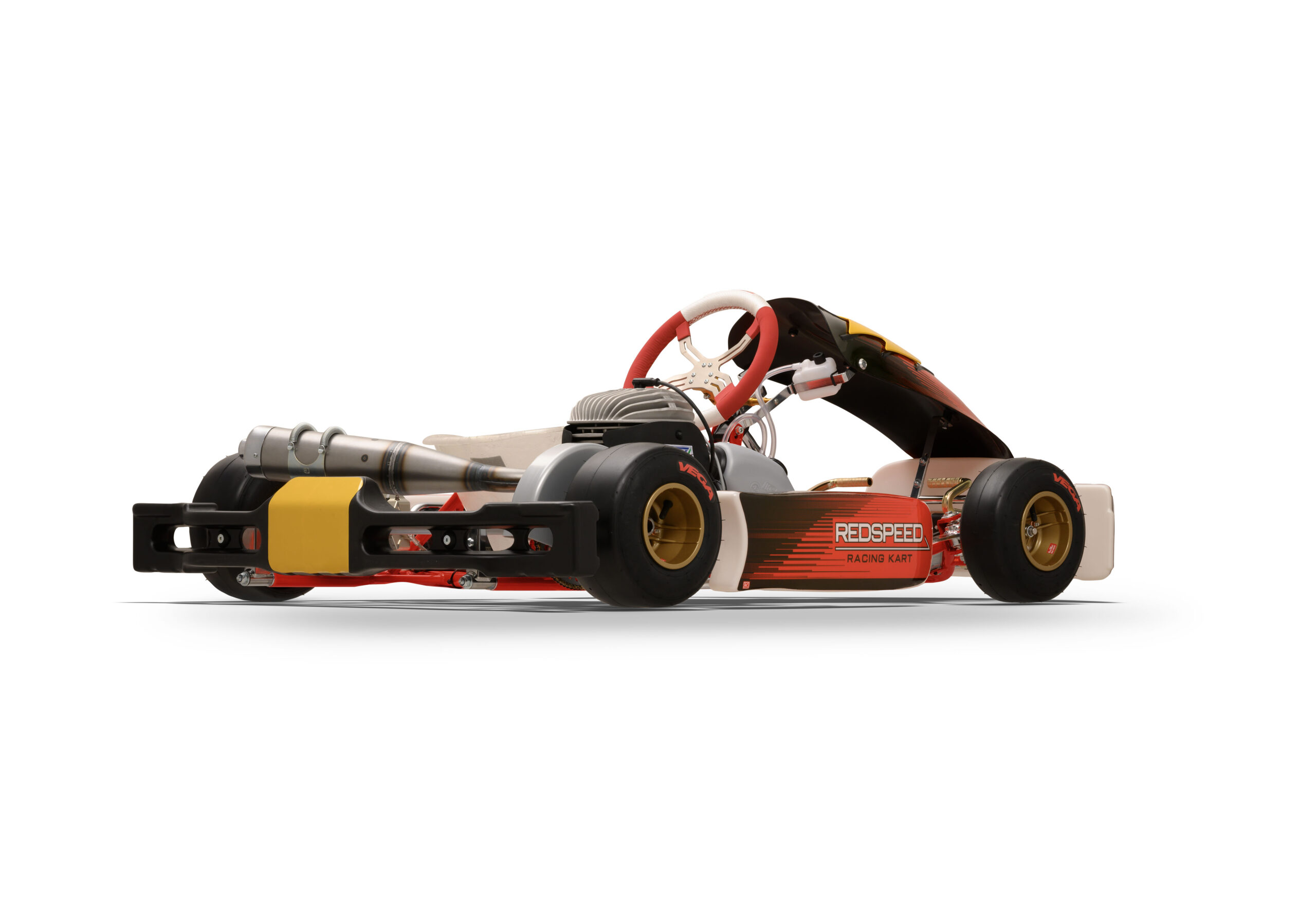

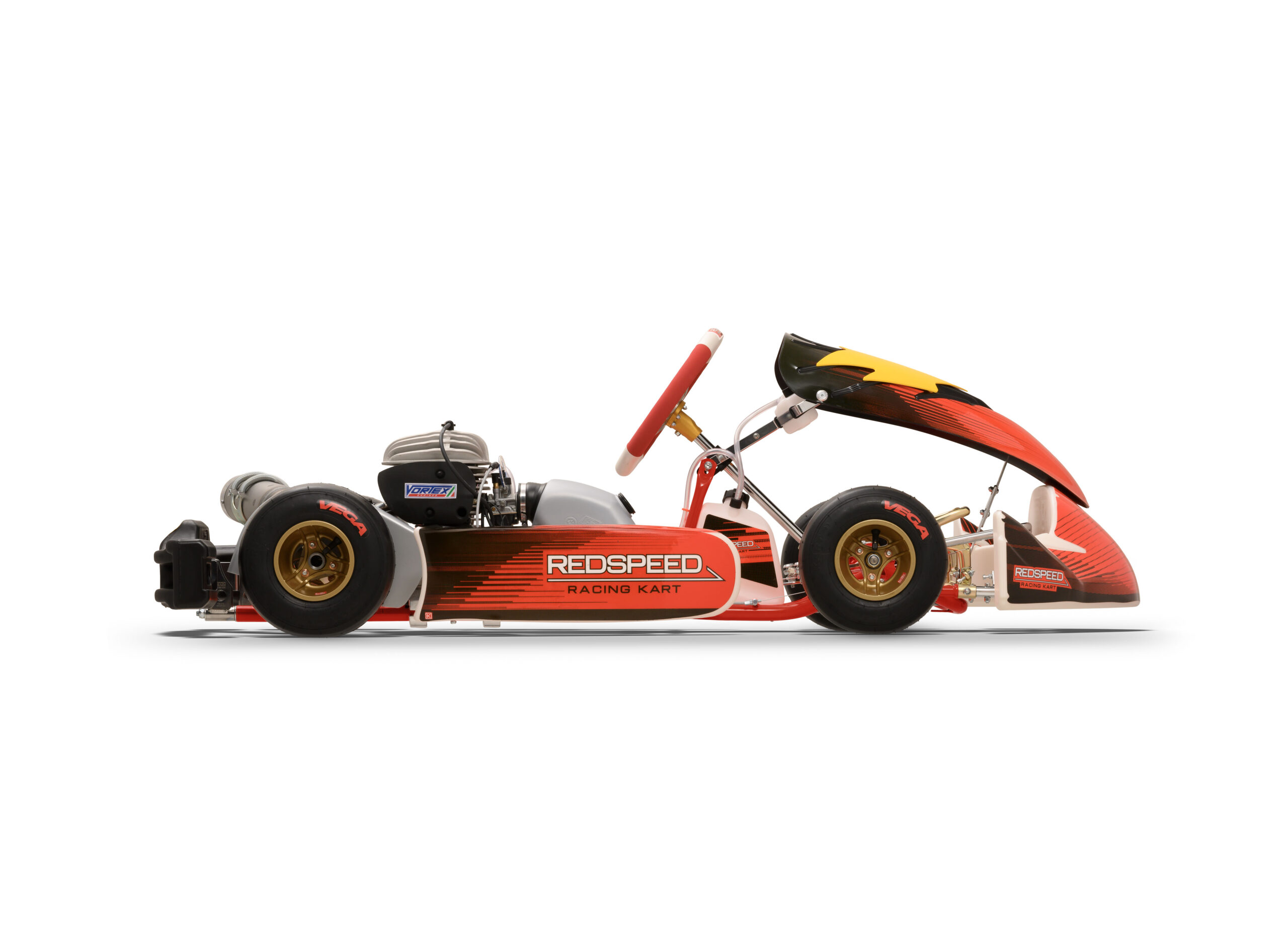

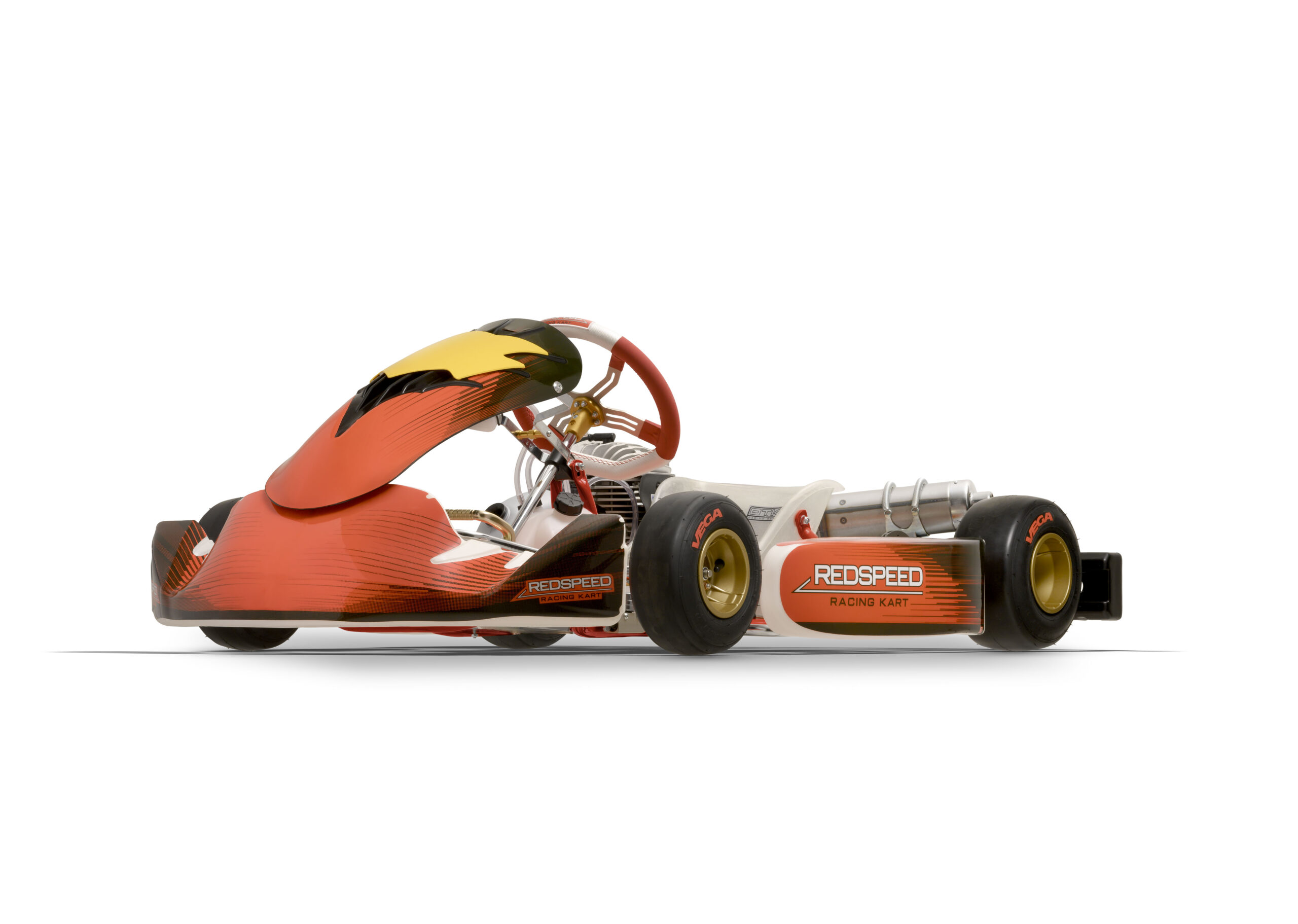

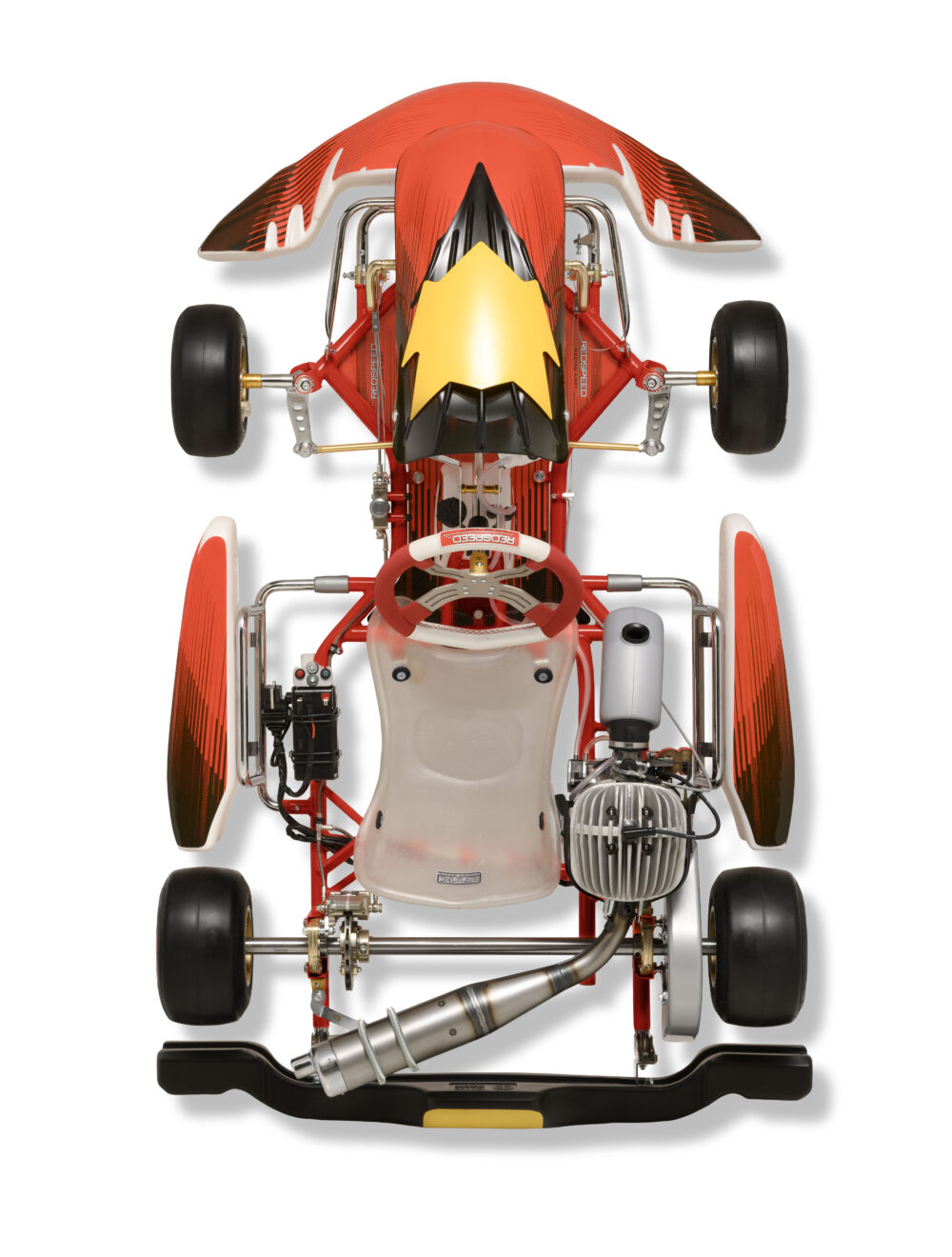

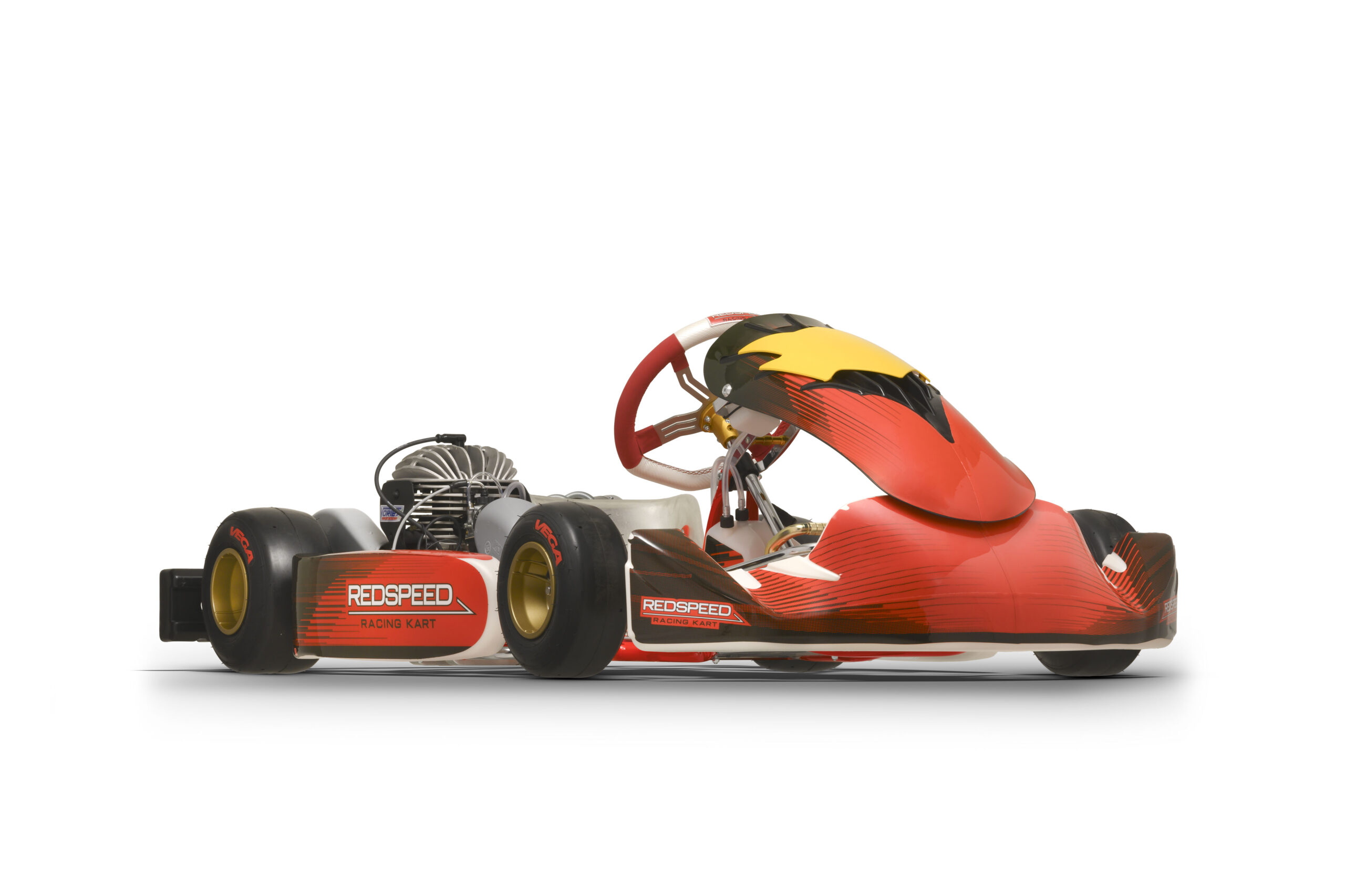

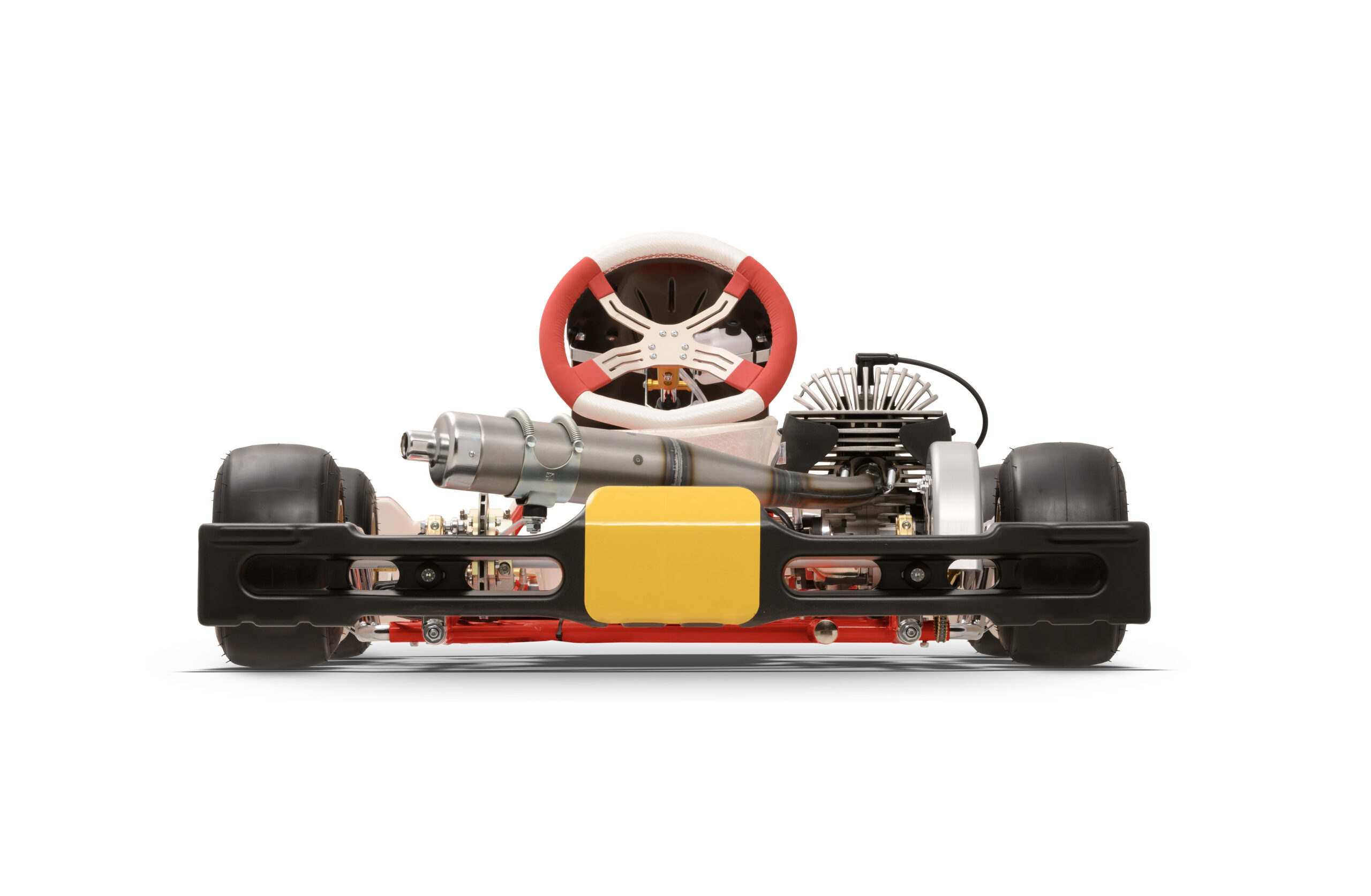

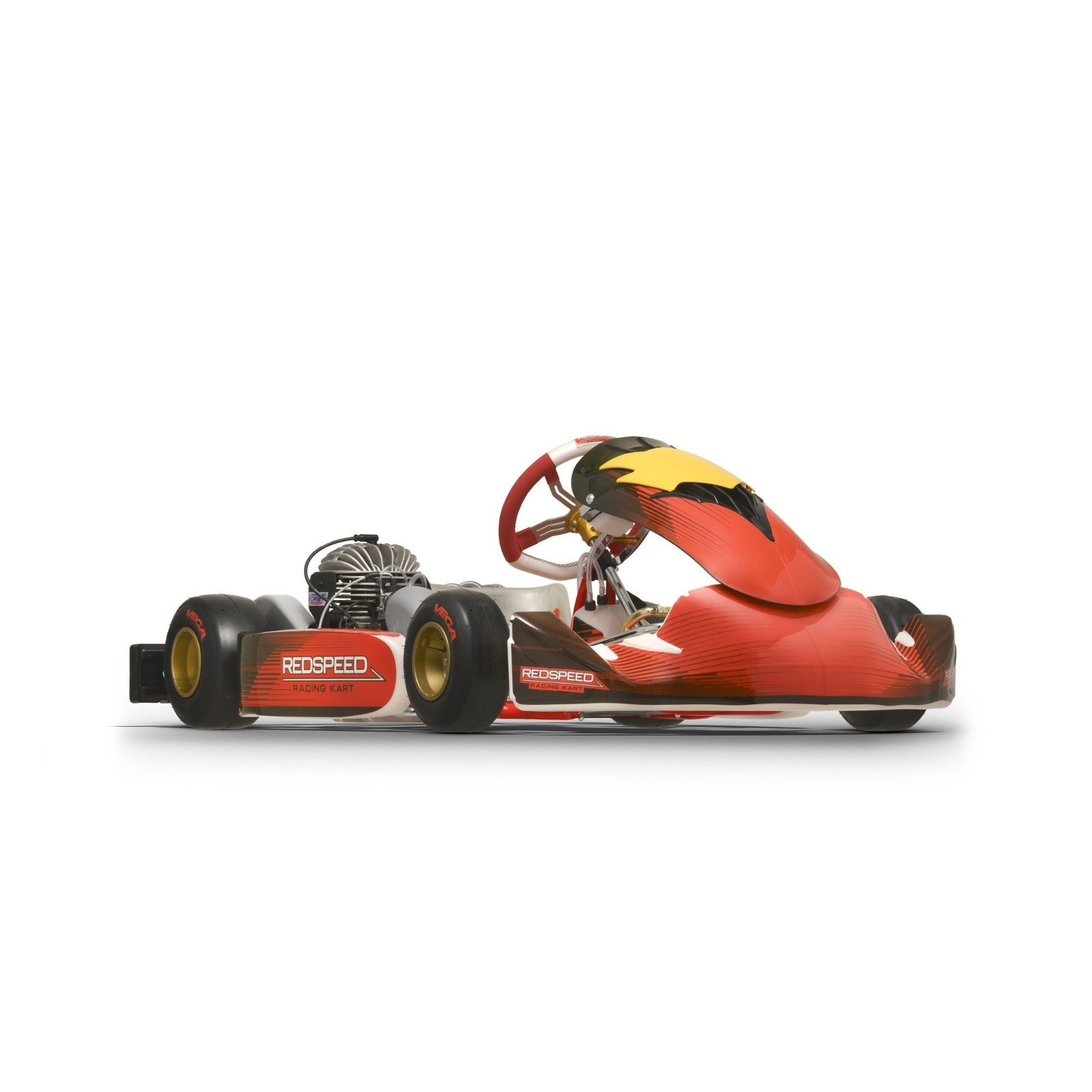

Redspeed Rookie EVM / EVS rolling chassis for the Mini category, built by OTK Kart Group with Ø28 mm frame tubes and supplied without engine. Available from Kartshop in Dubai, UAE.

Key specifications

• Frame: chrome-moly (Cr-Mo) steel, Ø28 mm tubes, 950 mm wheelbase, height adjustable front and rear; CIK-FIA homologated
• Version: specific for soft-compound tyres (Rookie EVS and EVM share this specification in the OTK price list)
• Rear axle: Ø30 x 960 mm, Type O
• Brake: BSM5 rear hydraulic system with self-adjusting function, 4-piston caliper and one-piece master cylinder; floating self-ventilated Ø160×10 mm disc
• Stub axles: BMT with Ø17 mm pin
• Camber and caster: eccentric bushes with Ø8 mm uniball
• Components: aluminium

In the box

• Bodywork: M8 sidepods, M9 front spoiler and front fairing with sticker kit
• Steering wheel: 4-spoke with high-grip covering
• Footrest: aluminium; pedals: steel
• Seat: Mini fibreglass, flat bottom (sizes 1, 2)
• Wheel set: AXJ 110-145 or 110-130
• Chain guard: integral, with one-piece supports
• Exhaust support with cradle; engine mount with brackets specified at order according to the engine used

Specifications from the official OTK Kart Group price list. Official OTK Kart Group chassis. In stock at our Dubai warehouse where shown; orders are dispatched the same day they are received, with DHL Express delivery across the UAE and the GCC.
