SMARTYCAM 3 SPORT 84 CAN 200 UK

Description

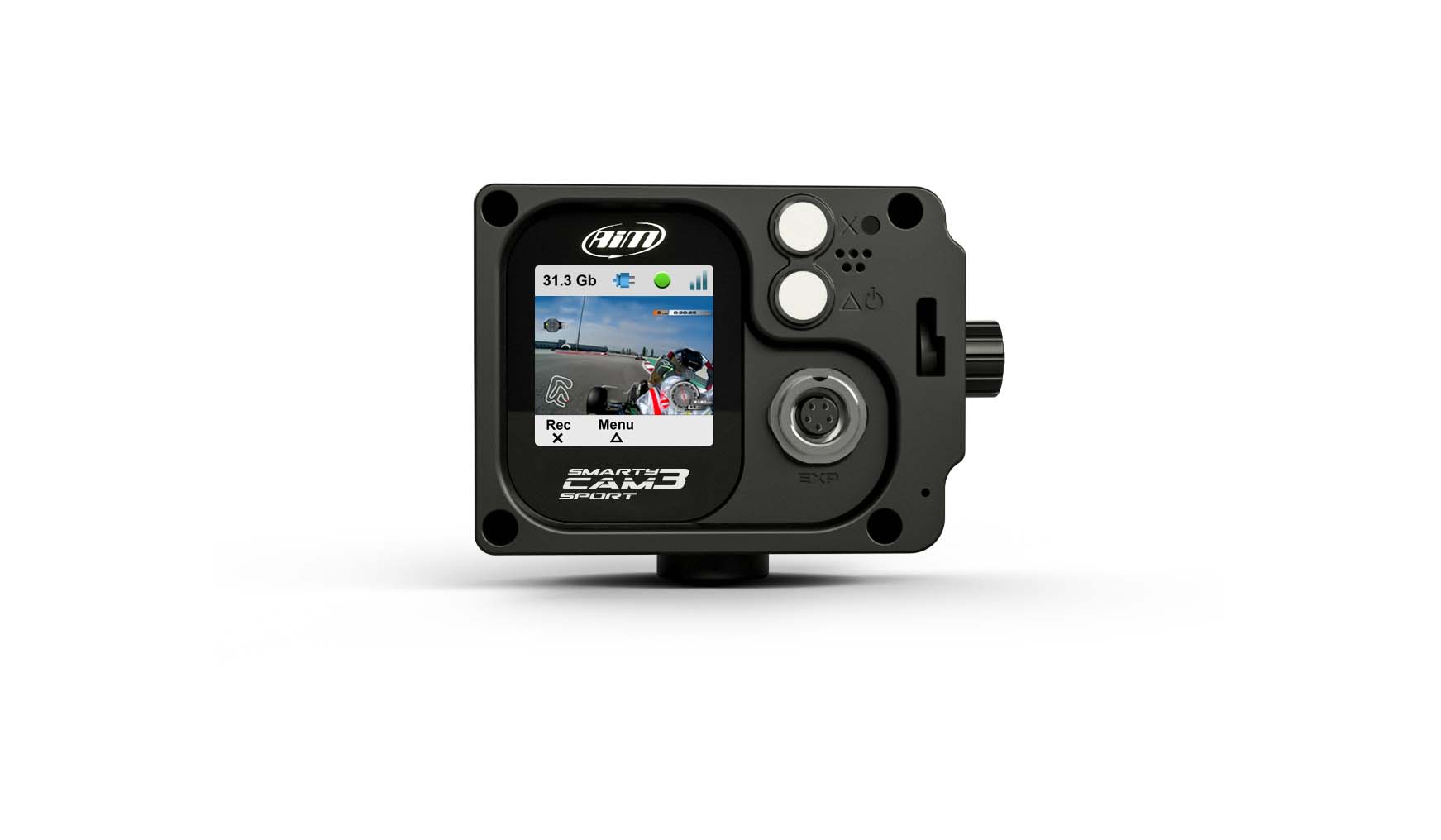

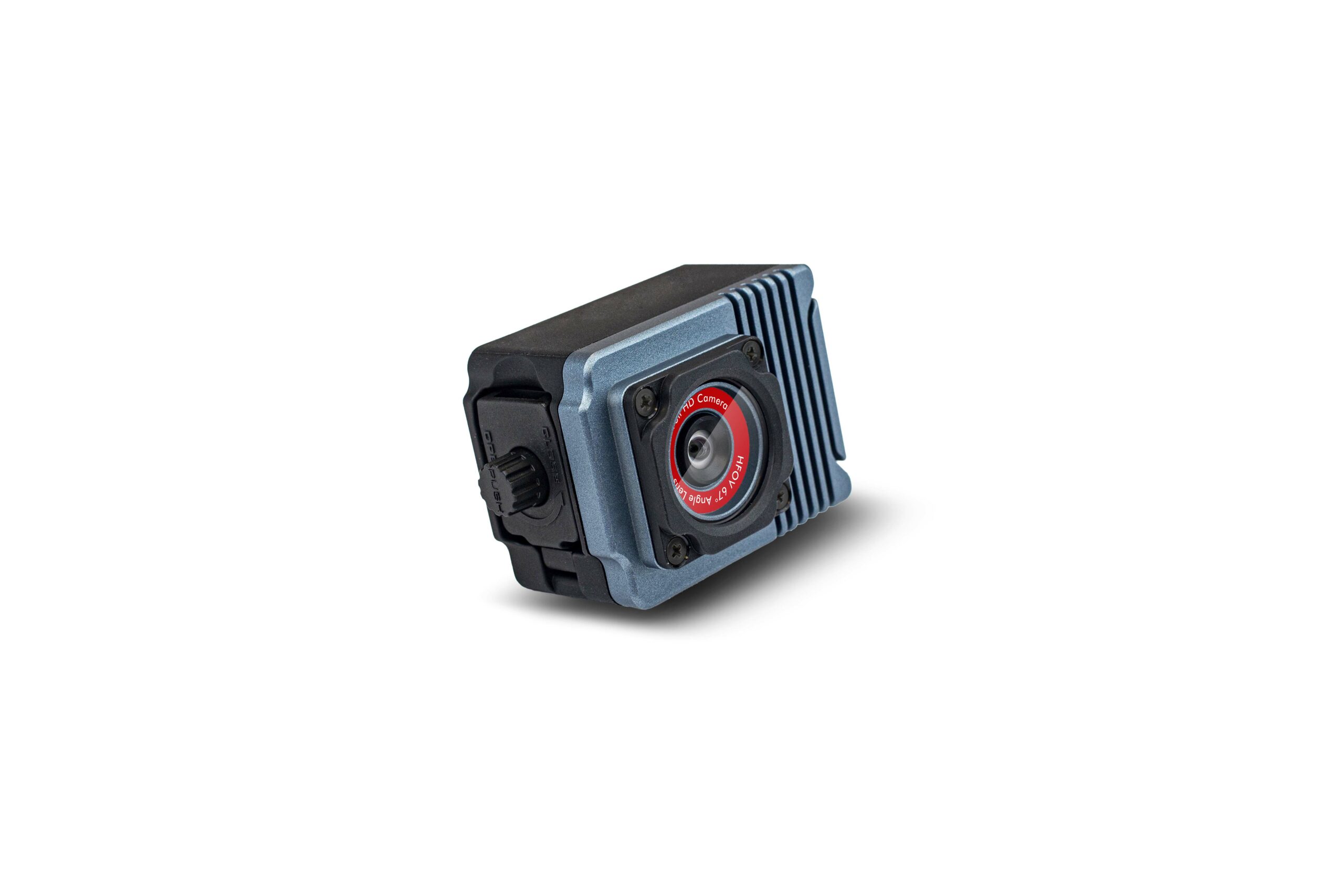

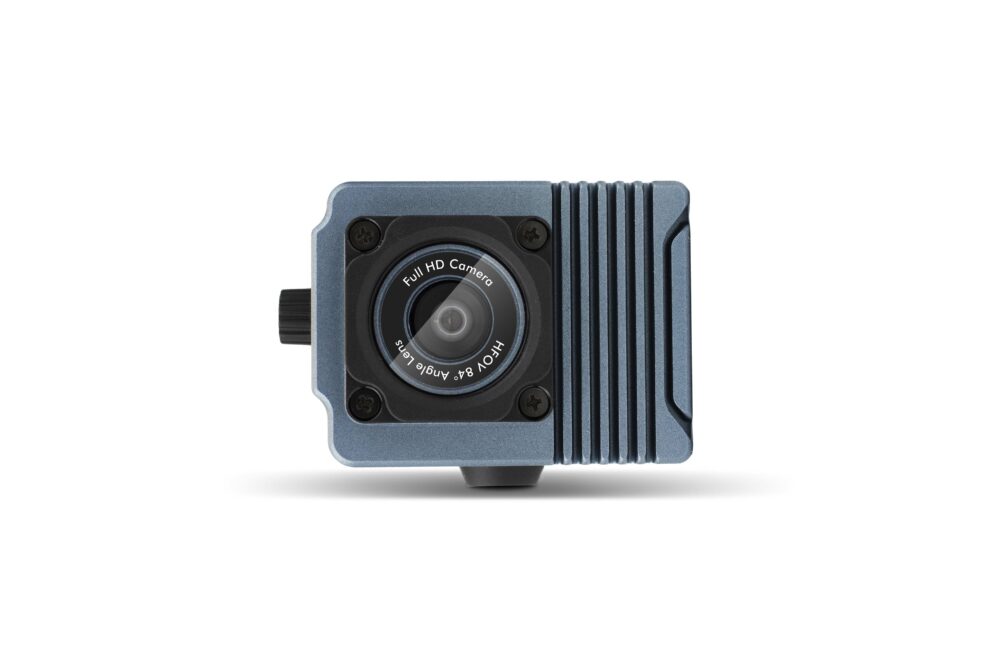

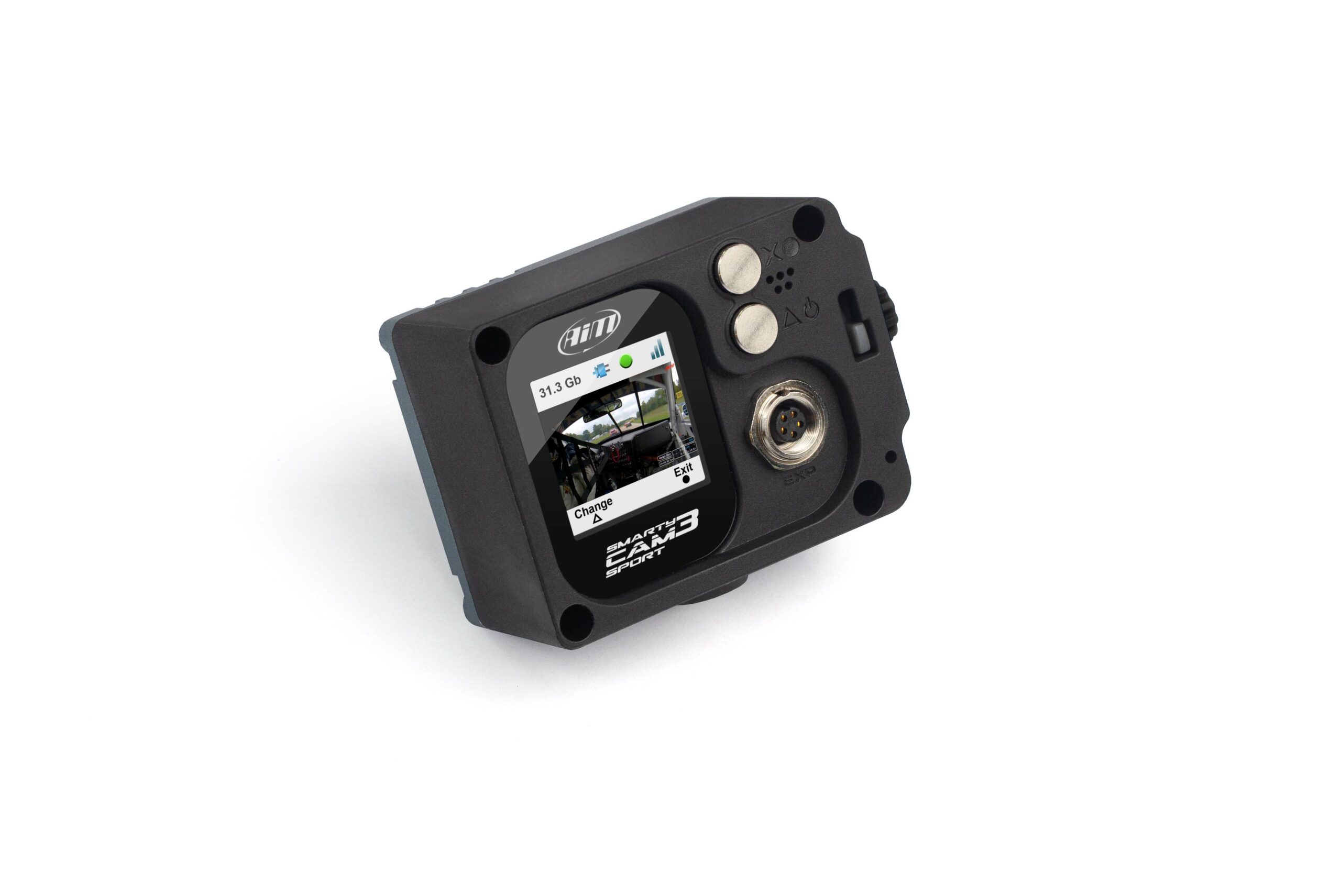

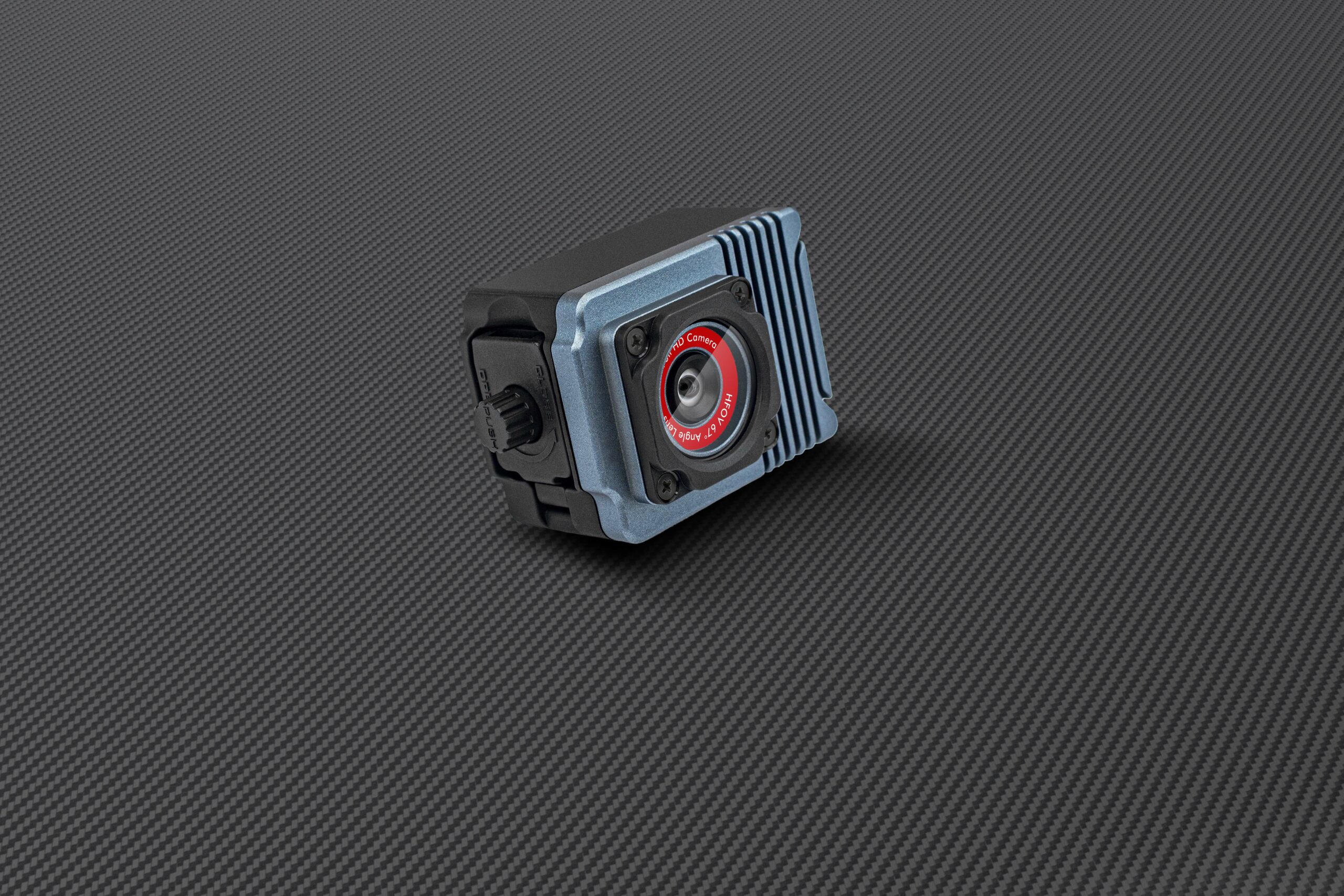

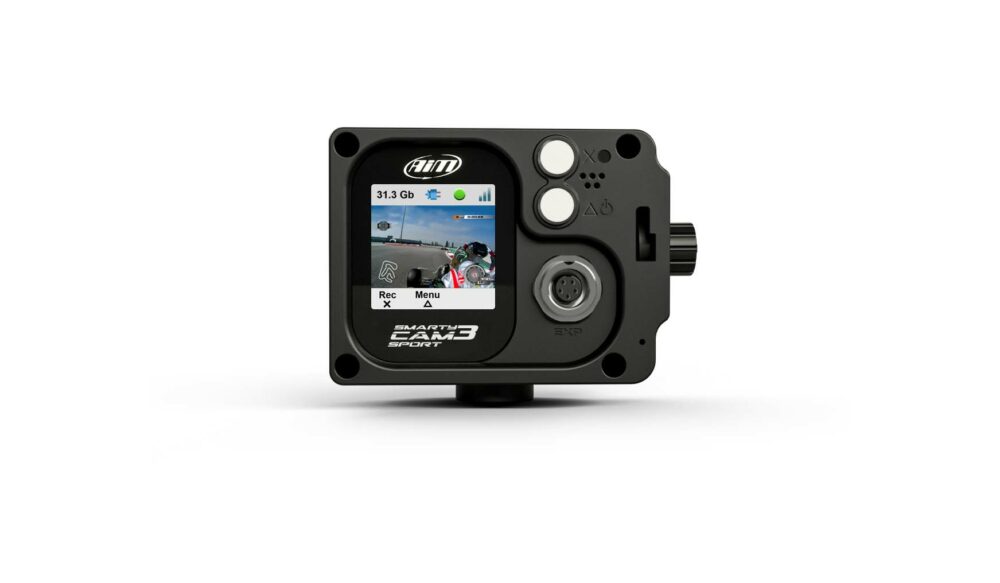

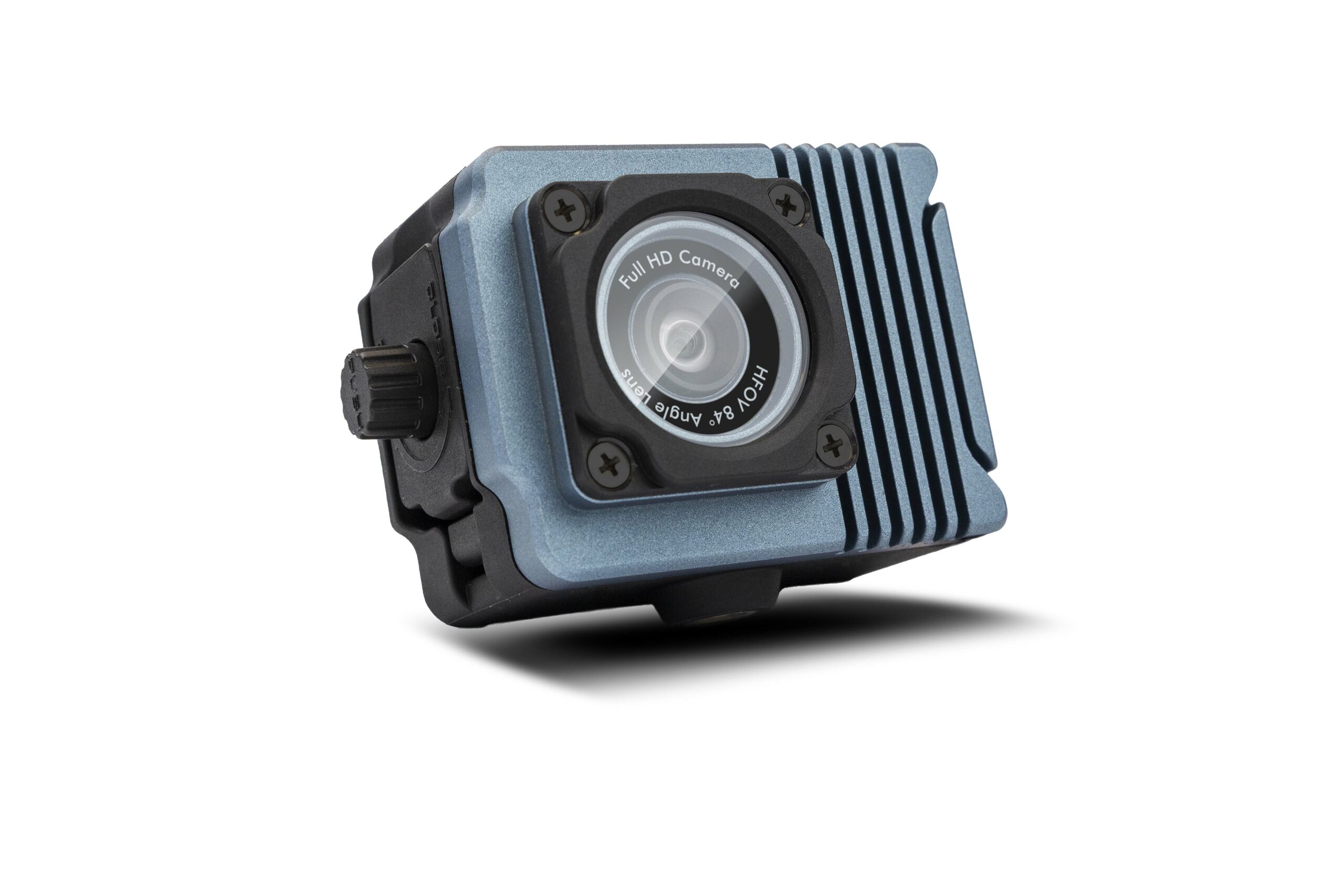

The AiM SmartyCam 3 Sport is an on-board camera for karting that overlays on the video the data sampled by the connected AiM logger, such as a MyChron. This kit has the 84 deg lens and a 2 m CAN cable. Available in the UAE from Scuderia in Dubai.

Key specifications

• Video H.264, 1920 x 1080 at 30 fps
• Lens field of view 84 deg
• Global shutter CMOS sensor
• Built-in 128 x 128 pixel display
• Rechargeable internal lithium battery; external power 9-15 V
• microSD storage up to 2 TB
• 1 x Binder 712 female 5-pin connector (CAN)
• Automatic power on/off and automatic start/stop recording
• Operating temperature -10 to +50 deg C
• 79.9 x 54 x 46.5 mm, 200 g with battery
• 1/4″-20 UNC mounting point (max depth 5.5 mm)
• IP65 waterproof

Compatibility

• AiM MyChron6/MyChron6 2T and MyChron5S via CAN
• Other AiM loggers with CAN connection

In the box

• SmartyCam 3 Sport with 84 deg lens
• CAN cable 2 m

Software

Video and data overlay are configured and analysed in AiM RaceStudio 3.

Genuine AiM part, part number XS3S842G. Scuderia General Trading is the official AiM distributor in the UAE. In stock at our Dubai warehouse where shown; orders are dispatched the same day they are received, with DHL Express delivery across the UAE and the GCC.
